HTZ Publisher

Web-based coverage sharing platform

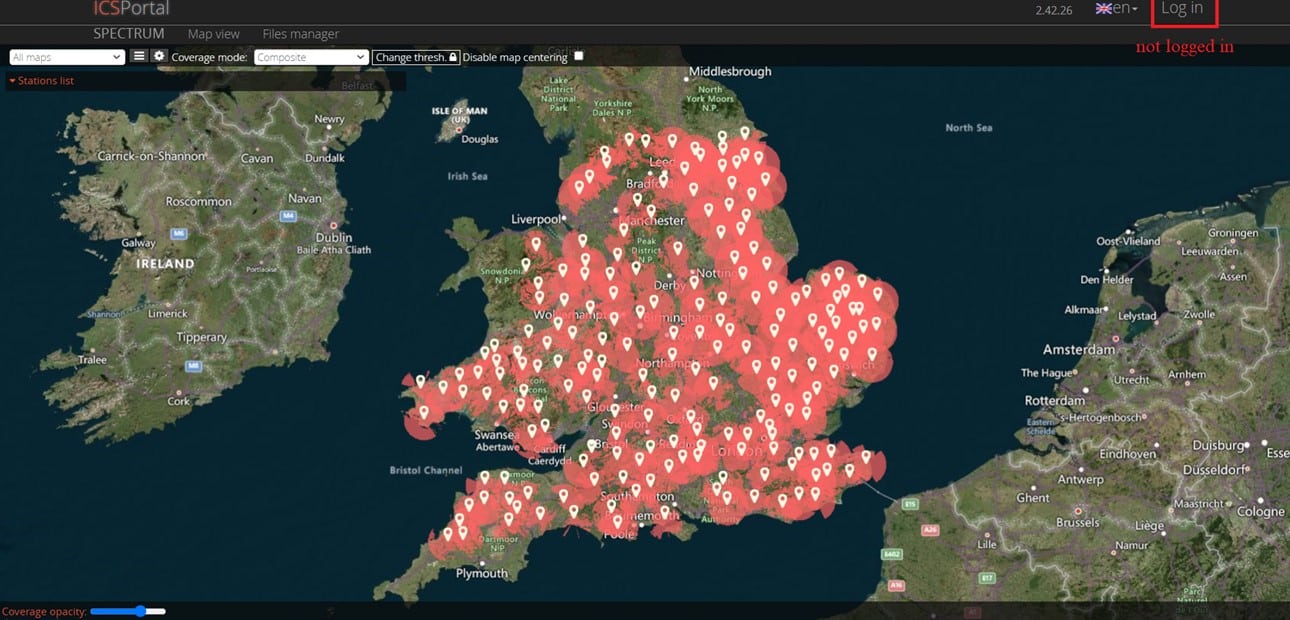

Displays mobile not-spots
Publishes composite, best server & site-by-site coverage
Suitable for Mission support control rooms
Features search engine filters
Supports MW link networks
Browser-based App for PC, tablet or phone

Product Overview

HTZ Publishes is a web-based coverage-sharing platform for sharing real-time coverage outputs flexibly and securely. This adaptable solution publishes network not-spots and provides real-time network status to reflect changes in the network.

Supporting coverage outputs from cellular, MW, Wi-Fi, PMR and broadcast technologies, the key features include:

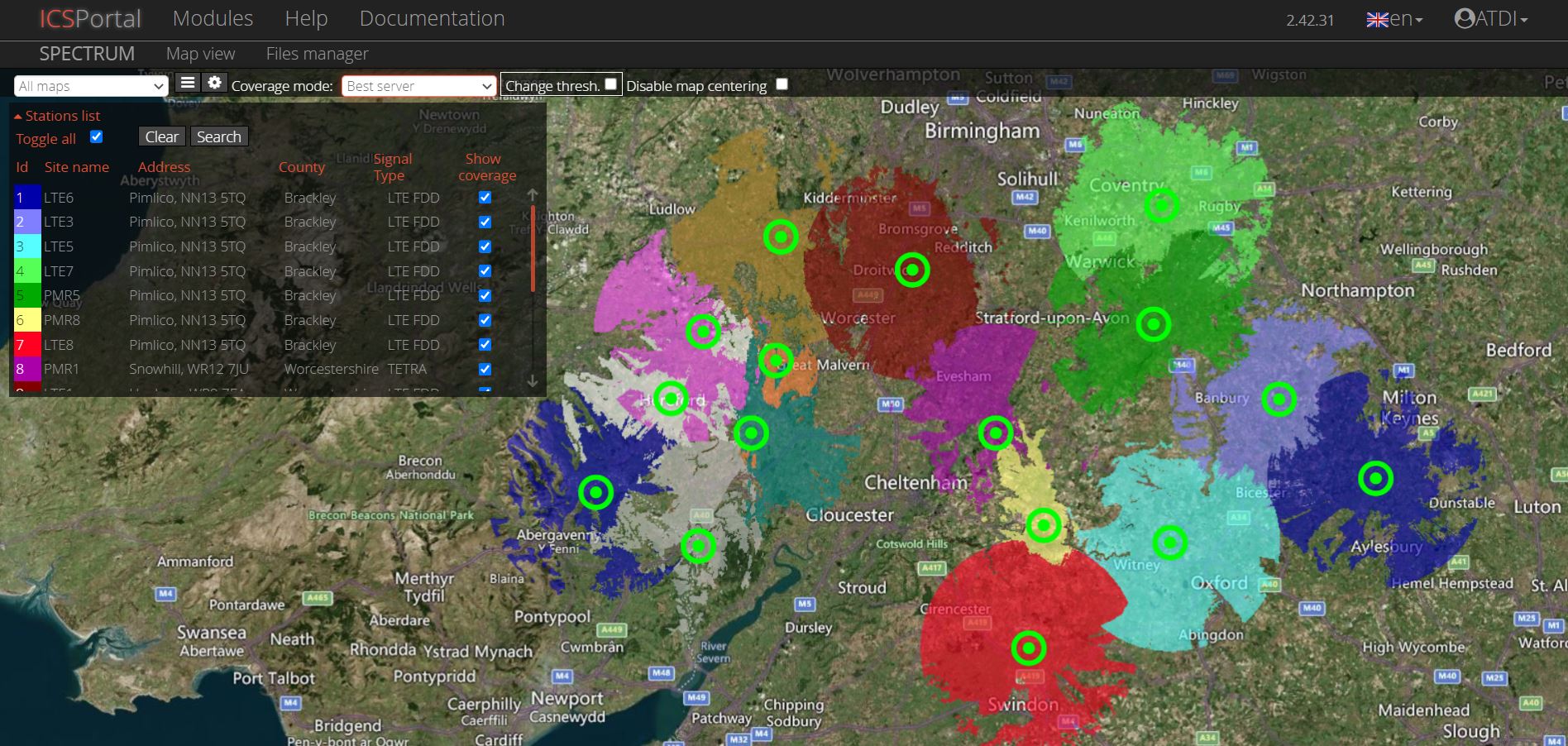

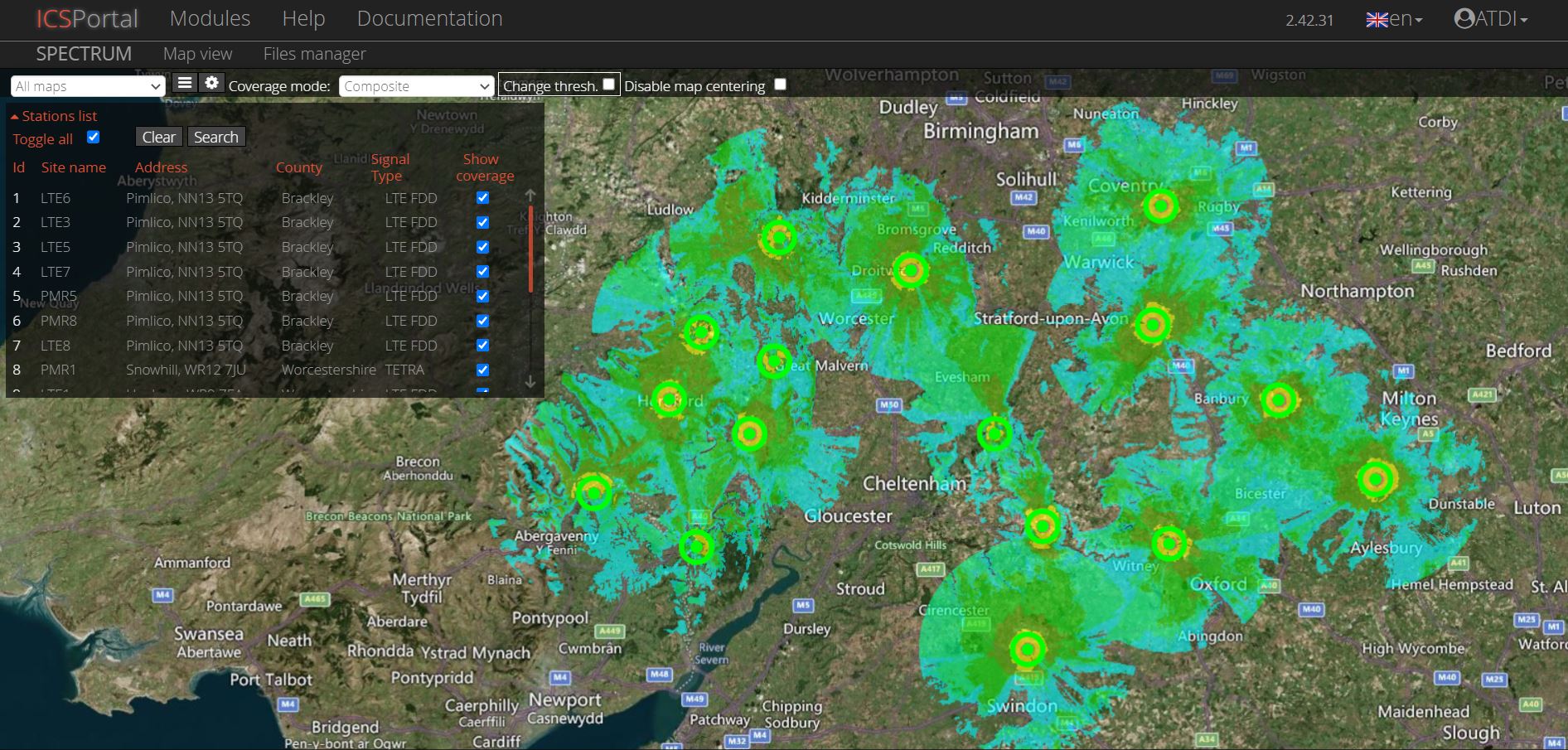

  • Publishes composite, best server and site-by-site coverage

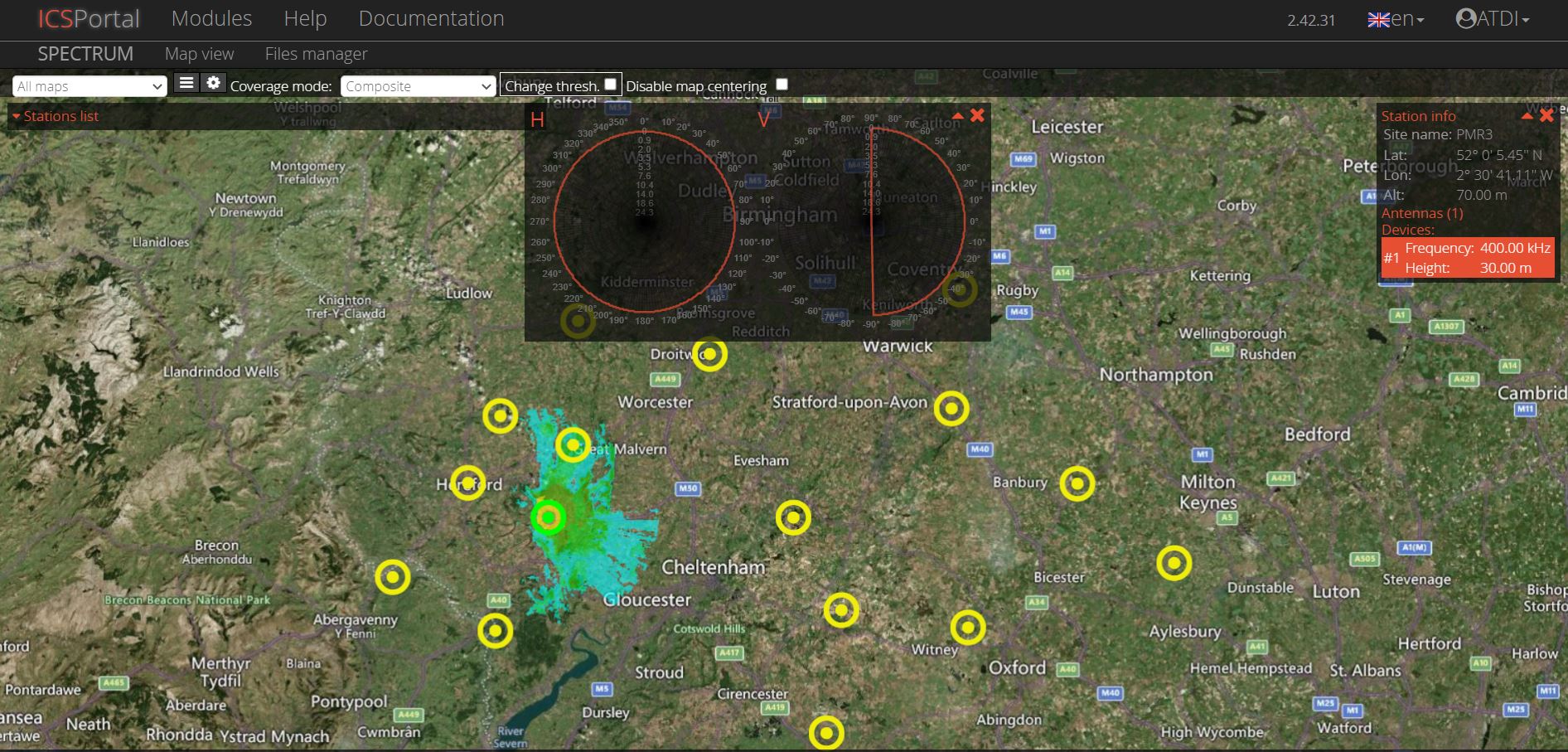

  • Displays site location, ground elevation, frequency and, antenna height & patterns
  • A simple interface with an easy on-off switch for the station list or map to simulate the impact of mobile not-spots

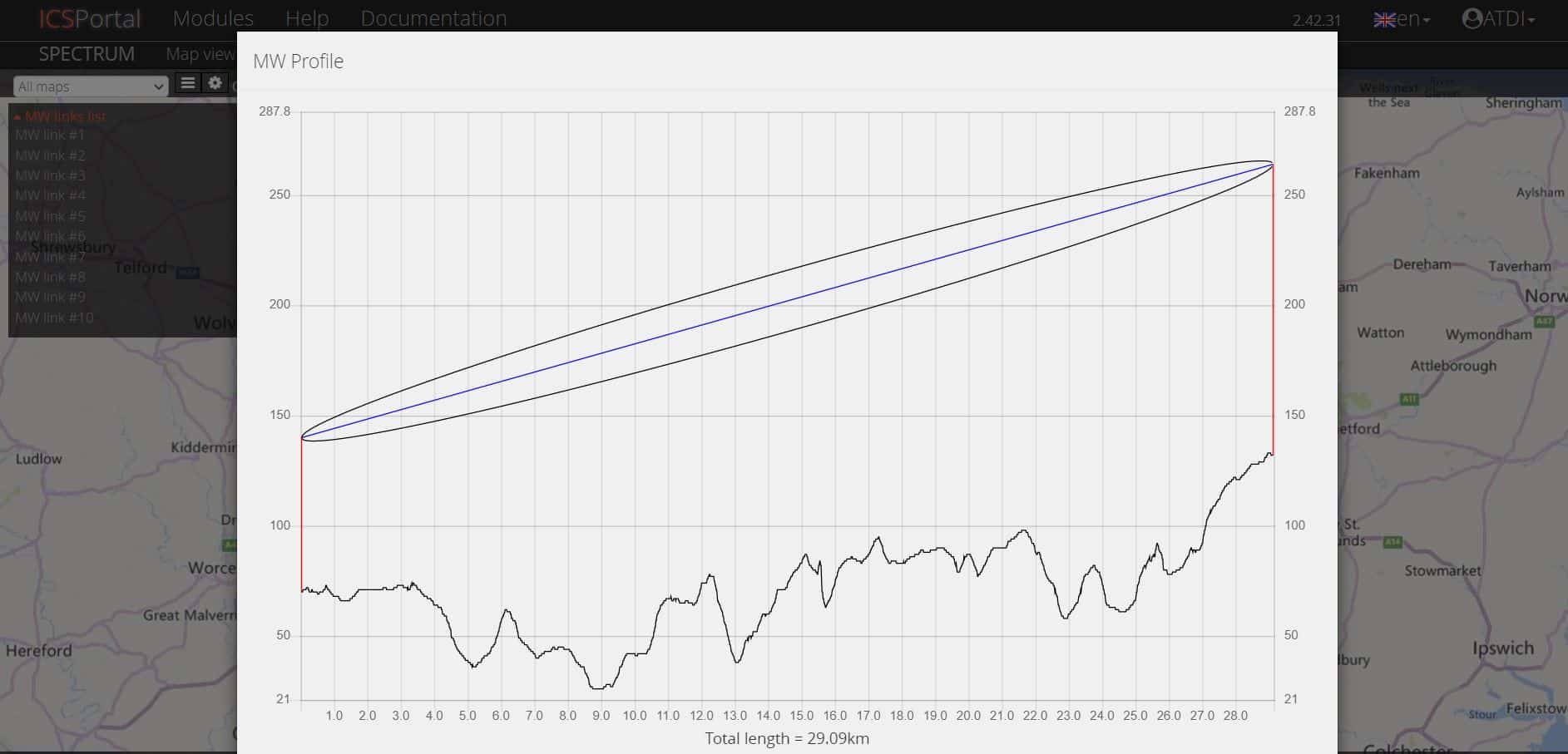

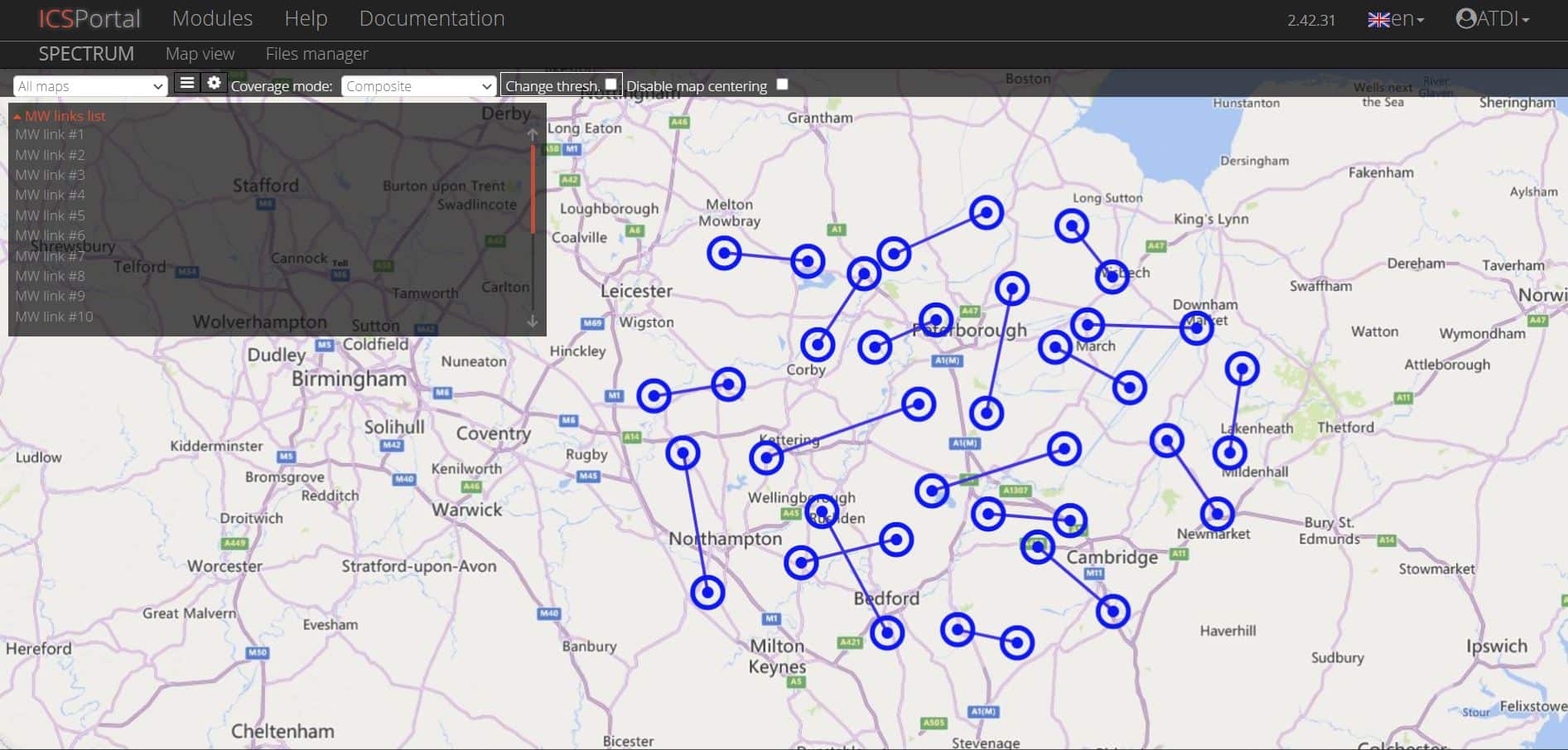

  • Supports Microwave link network and profile display and control
  • User-friendly file manager stores, uploads and selects the desired network
  • Search engine filters the network for sites of interest or by radio service type
  • Access control by user authentication
  • 3rd party GIS API integration and user-defined colours and icons

Watch our product video
Request a Demo

Features

HTZ Publisher distributes coverage outputs for cellular, Wi-Fi, PMR and broadcast technologies.

Coverage maps for a chosen area can be viewed using third-party map providers like Mapbox™ and ArcGISTM or self-hosted datasets. Lightweight tiles are exported (auto coverage tiling), with limits set for streaming to services such as Google Maps. Tiles can be streamed in multiple resolutions depending on the scale level while maintaining a constant data rate.

HTZ Publisher displays multiple-layer coverages and prospective coverage plots. It combines coverage plots created in HTZ  with high-resolution map data (1-2m). Users view simplified coverages (throughput or RSRP) with the option to personalise palette options.

Key features include:

  • Data friendly - a data-centric solution that is suitable for virtual machine (VM) deployment with Windows,  Built-on Docker and Linux. The app can be installed on single or multiple VMs;
  • Scalable - features a load-balancer for managing critical services which adapts easily to increased demands due to its vCPU/RAM environment;
  • GIS data overlay – allows terrain shade-view, clutter, population, sites and vectors. Publishes and shares detailed coverages for internal and public use. Supports private and public hosting;
  • Easy coverage updates - accessible via a portal to display coverage and GIS layers. Sync and API support is available;
  • Multi-layers – enables users to select multiple coverage analysis layers;
  • Modular –the plug-in/plug-out architecture supports a container approach to storing faults, upgrades and outages;
  • Flexible hosting options - available as a subscription or perpetual basis from a private cloud solution or intranet;
  • Secure - applies an encrypted SSL reverse-proxy architecture for both front/back end and adheres to industry-standard Auth 2.0 and SSO;
  • Adheres to standards - GIS compatible /WMS 1.3.0. Enterprise-friendly as a result of domain-specific SSO;
  • Address lookup - built-in address validation and overlay.

HTZ Publisher is well suited to Mission control rooms because it features:

  • An easy-to-use interface
  • Requires no specific RF-knowledge
  • Is simple to install
  • Overlays the latest heat maps published by mission planning departments.
Request a Demo

Deployment

This flexible solution can be deployed to meet the end users’ exact requirements. ATDI offer a configuration service with deployments defined according to existing infrastructures.

Access to the software:

  • Internal/Intranet (private) for local LAN access only with support
  • Cloud (private) managed by ATDI or the end-user using data centres with access via a dedicated machine or VM/s
  • ATDI shared-Cloud hosted and managed by ATDI and accessible on a subscription basis. This offers instant access to the service which can be scaled depending on demand.
